Trusted solutions for thousands of labs internationally. Family of high-performance analysers, with RFID tagged reagents and test loader system.
Wide product portfolio ranging from semi-auto photometers to complete automation up to 1000 tests/hour, with advanced connectivity and software solutions.
Affordable

Affordable

Excellent on board and shelf life reagent stability - no waste. A family of analysers sharing consumables and parts. Low running & operating costs.
Effective

Effective

Hard Glass cuvettes to maximise performance. Unique static photometer for high stability and sensitivity. Wide reagent range.
Reliable

Reliable

Proven Quality with maximum uptime. Well defined maintenance activities. Result Safety Features
Peace of Mind

Peace of Mind

High performance, easy to use systems, allowing you to concentrate on what matters most; the patient

XL 180

FULLY AUTOMATIC CLINICAL CHEMISTRY ANALYSER

The ideal solution for small labs with increasing demand. Fully automated, random access clinical chemistry analyser.
  • Throughput: 180 tests/hour photometric, 360 tests/hour with optional ISE module
  • Probe preheating & vertical crash detection & dedicated mixer with variable speed (3x levels)
  • Static Photometer ranging from 340 to 700 nm & 120 semi-disposable PMMA cuvette rotor
  • Inbuild Barcode Reader for samples and reagents & Auto Dilution & Auto Rerun & STAT
Download brochure
Read more

KEY FEATURES:

  • Fully automated, Random access,Discrete Clinical Chemistry Analyser
  • Complete system provides flexibility to program infinite protocols
  • Throughput of 180 photometric tests/hour & 360 tests/hour with ISE (optional)
  • Requires only 180 μl reagent volume with sapphire syringe
  • Onboard cooling for reagents
  • Primary tube sampling with option of sample cup
  • Static photometer with 8 multi-Wavelengths ranging from 340 to 700 nm
  • Probe with pre-heating facility
  • Dedicated mixer with variable speed: Low, Medium and High
  • Inbuilt Barcode reader for samples and reagents
  • Single Use or Re-usable cuvettes (external washing)

MORE INFORMATION:

  • Probe with vertical obstruction detection, liquid level sensing
  • Multiple assay modes: 1-Point, 2-Point, Rate-A, Rate-B, Direct Potentiometry (optional)
  • Multiple calculation modes such as linear, non-linear, multipoint etc.
  • Extensive Q.C Program Levy-Jenning curve and QC rules
  • Unlimited data storage
  • Windows operating mode with intuitive user interface
  • Lamp saving function enhances lamp life
  • Real time monitoring of reaction curve
  • Auto dilution and auto rerun facility
  • Flexibility for STAT samples
  • Wide test menu: routine chemistry, special chemistry,
  • Immunoturbidimetric tests & ISE (optional)
  • Direct patient reportable format and printout with user defined option

XL 200

TOP OF THE RANGE BENCHTOP CLINICAL CHEMISTRY ANALYSER

Designed for growing and mid-size laboratories with high expectations. Manufactured with the highest standards to provide accurate and precise results in a cost effective way.

  • Constant throughput of 200 tests/hour, 400 with optional ISE module
  • Hard glass reaction cuvettes & Automatic cuvette blank measurement
  • Advanced QC module & Real time monitoring of reaction
  • User friendly software interface & Inventory management
Download brochure
Read more

DISPENSING OF SAMPLES AND REAGENTS

  • Sample volume: 2-70 μl (in 0,1 μl step)
  • Reagent volume: R1 50-300 μl (in 1 μl step),R2 10-200 μl (in 1 μl step)
  • Multifunctional probe equipped with liquid -level sensor and crash detector
  • Auto-dilution of samples and calibrators

ECONOMY

  • Minimum reaction volume: 180 μl
  • Reusable glass reaction cuvettes

MIXING SYSTEM

  • Independent stirrer
  • 3 user selectable mixing speeds

QUALITY CONTROL

  • 4 levels of control material can be used
  • Levey-Jennings graphs
  • Twin Plot diagrams for monitoring of systematic and random error

REACTION UNIT

  • 45 reusable hard glass cuvettes
  • Possibility of replacement of individual cuvettes
  • Wash station – cuvette rinsing and drying in 8 steps
  • Automatic cuvette blank measurement before analysis
  • Reaction temperature 37°C ± 0,2°C

SAMPLE TRAY

  • 39 positions for samples, blanks, standards, calibrators, controls and ISE solutions
  • Primary tubes 5, 7 and 10 ml and cups
  • STAT sample with priority in any position
  • Possibility of programming up to 99 virtual trays

REAGENT TRAY

  • 50 positions, 20 ml, 50 ml reagent containers, 5 ml tube with adaptor)
  • Reagent compartment with Peltier/air cooler (8-12°C)
  • Option to use one reagent for several tests simultaneously

SOFTWARE

  • Convenient user interface
  • Connection to LIS
  • Statistical methods of processing results
  • Data export in selected format





MEASUREMENT MONITORING

  • Color indication of sample analysis
  • Option of monitoring the reaction in real time
  • Reagent volume monitoring
  • Informative reports on ongoing analyser status

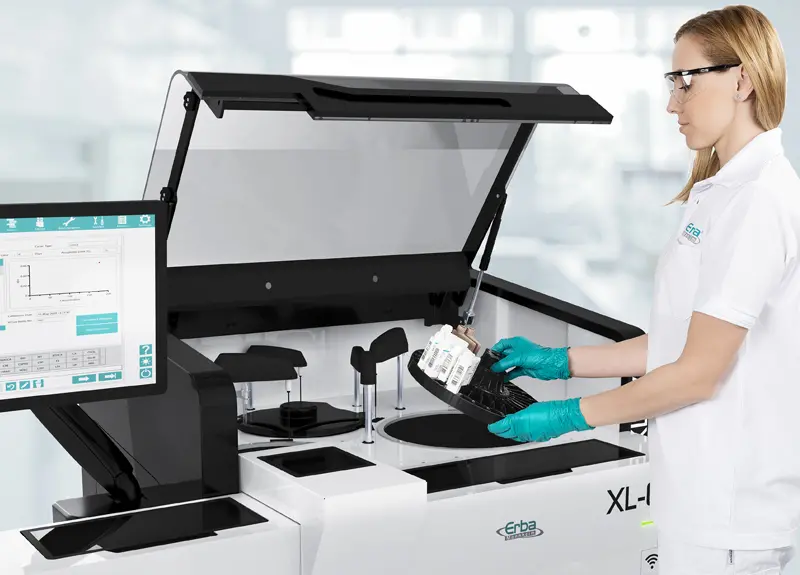

XL 640

HIGH PERFORMANCE FLOOR STANDING CLINICAL CHEMISTRY ANALYSER

Enhances productivity and turnaround time and can comfortably handle the demands of an increased workload. Equipped with three probes and advanced diffraction photometer produces quality results with the highest sensitivity and linearity.
  • Throughput of 400 tests/hour photometric, 640 with optional ISE
  • Probe preheating & Crash detection & Clot detection
  • Hard Glass cuvettes & 8-step washing & background abs checks
  • Serum index interferences & Prozone checks
Download brochure
Read more

DISPENSING OF SAMPLES AND REAGENTS

  • Sample volume: 2-70μl (0.2 μl step)
  • Reagent volume: R1 50-300 ul (1 μl step) R2 10-300 ul (1 μl step)
  • 3 dispensing probes (sample, R1, R2) equipped with liquid -level sensor and crash detector
  • Auto-dilution of samples and calibrators
  • Clot detection

ECONOMY

  • Minimum reaction volume: 180 μl
  • Reusable reaction glass cuvettes

MIXING SYSTEM

  • 2 independent stirrers
  • 3 user selectable mixing speeds

QUALITY CONTROL

  • 4 levels of control material can be used
  • Levey-Jennigs graphs
  • Twin Plot diagrams for monitoring of systematic and random error

REACTION UNIT WITH WASH STATION

  • 72 reusable hard glass cuvettes
  • Possibility of replacement of individual cuvette
  • Wash station – cuvette rinsing and drying in eight-step procedure
  • Automatic cuvette blank measurement before analysis

SAMPLE TRAY

  • 80 positions for samples, blanks, standards, calibrators, controls and ISE solutions
  • Primary tubes 5, 7 and 10 ml, vacuum system tubes and cups
  • STAT sample with priority in any position
  • Additional tray for 80 samples included

REAGENT TRAY

  • 56 positions, 20 ml, 50 ml reagent containers, 5 ml tube with adaptor
  • Reagent compartment with Peltier/air cooler (8-12°C)
  • Option to use one reagent for several test simultaneously

SOFTWARE

  • Convenient user interface
  • Connection to LIS
  • Programmable auto-start from sleep mode including automatic daily maintenance
  • Statistical methods of processing results
  • Data export in selected format

MEASUREMENT MONITORING

  • Colour indication of sample analysis
  • Option of monitoring the reaction in real time
  • Reagent volume monitoring
  • Informative reports on ongoing analyser status

XL 1000

THE EFFICIENT AND RELIABLE SOLUTION FOR HIGH THROUGHPUT REQUIREMENTS

Equipped with all necessary advanced features that one expects from a high end automatic system. The perfect "workhorse" for laboratories with increased workload.

  • Throughput of 800 tests/hour photometric, 1000 with optional ISE
  • Sample loading through rack system with a capacity of 150 on board samples
  • Cooled carousel for calibrator, control and STAT samples
  • On board capacity for 86 reagent vials and min reaction volume of 150 μL.
Download brochure
Read more

DISPENSING OF SAMPLE AND REAGENT

  • Sample volume: 2-60 μl (0.1 μl step), 70 μl with ISE
  • Reaction volume: 150 μl – 550 μl
  • 3 dispensing probes ( R1, R2/R3) equipped with liquid - level sensor and crash detector
  • Auto-dilution of samples and calibrators
  • Clot detection

SAMPLE AUTOLOADER

  • 23 racks
  • 115 sample positions on automatic autoloader
  • Primary tubes 5, 7 and 10 ml, vacuum system tubes
  • Barcode reader for sample identification

2 REAGENT TRAYS

  • 2x 43 cooled positions
  • System packs: 50 ml, 20 ml and 5 ml (adapter)
  • Barcode reader for easy identification

REACTION TRAY

  • 147 hard glass reaction cuvettes
  • Mixing system with 3 speed levels
  • Wash station: cuvette rinsing & drying
  • Automatic cuvette blank measurement before analysis

STAT TRAY

  • 45 positions
  • Can be used for blank, controls, STAT samples

QUALITY CONTROL

  • 4 levels of control material can be used
  • Levey-Jennigs graphs
  • Twin Plot diagrams for monitoring of systematic and random error

SOFTWARE

  • Convenient user interface
  • Connection to LIS
  • Programmable auto-start from sleep mode including automatic daily maintenance
  • Statistical methods of processing results
  • Data export in selected format

MEASUREMENT MONITORING

  • Colour indication of sample analysis
  • Option of monitoring the reaction in real time
  • Reagent volume monitoring
  • Informative reports on ongoing analyser status

CHEM 5X

Compact, reliable, semi-automated clinical chemistry analyser for routine biochemistry and immunoturbidimetric assays.
  • Dual cuvette system and inbuilt thermal printer
  • Photometric resolution up to 0.0001
  • Multi-point calibration with graphical display
  • USB connectivity to external printer and PC
Download brochure

CHEM 7

High end specification, semi-automated analyser for all routine clinical chemistry biomarkers, immunoturbidimetric assays and coagulation tests.
  • Triple cuvette system
  • Real time reaction monitoring
  • QC module with 3 control levels and Levy-Jennings plots
  • Flexible reporting formats
Download brochure

Reagent line

Liquid stable reagents, ready-to-use, specially designed for our clinical chemistry analysers, with well defined performance characteristics, higher linearity, sensitivity and precision. Expanding wide menu with focus to novel biomarkers and advanced solutions.
Download brochure

Erba Connect DX

COMING SOON.

Register Your Interest

Product comparison

  Erba XL180 Erba XL200 Erba XL640 Erba XL1000
Throughput 180 tests/h 200 tests/h 400 tests/h 800 tests/h
Throughput with ISE 360/tests/h 400/tests/h 640 tests/h 1040 tests/h
Probes x1 (R+S) x1 (R+S) x3 (R1+R2+S) x3 (R1+R2+S)
Optical Module Static (8 filters (340-700 nm)) Static (8 filters (340-700 nm)) diffraction grating (x12) (340-750 nm) diffraction grating (x15) (340-750 nm)
Cuvettes 120 PMMA, 5mm 45 Hard Glass, 5mm 72 Hard Glass, 5mm 147 Hard Glass, 5mm
Wash Station single use/ reusable 8-step 8-step 9-step
Reagent Pos 25 50 56 86
Sample Pos 15 flex & 10 39 80 150
Power Consumption 300 VA 600 VA 800 VA 2000 VA
Size (WxDxH)(mm) 675 x 450 x 300 810 x 700 x 600 910 x 780 x 1160 1350 x 1000 x 1250
Weight (kg/lb) 65 / 144 120 / 265 200 / 441 275 / 607
